import numpy as np import pandas as pd import matplotlib.pyplot as plt import matplotlib.gridspec as gridspec from mpl_toolkits.mplot3d import Axes3D from sklearn.datasets import make_classification from sklearn.ensemble import GradientBoostingClassifier from sklearn.model_selection import train_test_split from sklearn.metrics import ( roc_curve, precision_recall_curve, confusion_matrix, roc_auc_score, average_precision_score, fbeta_score ) from sklearn.preprocessing import StandardScaler import warnings warnings.filterwarnings('ignore')
np.random.seed(42)
print("=" * 60) print("Step 1: Generating synthetic fraud dataset...") print("=" * 60)
X, y = make_classification( n_samples=50000, n_features=20, n_informative=15, n_redundant=3, weights=[0.98, 0.02], flip_y=0.005, random_state=42 )
X_train, X_test, y_train, y_test = train_test_split( X, y, test_size=0.3, stratify=y, random_state=42 )
scaler = StandardScaler() X_train = scaler.fit_transform(X_train) X_test = scaler.transform(X_test)
print(f" Training samples : {len(X_train):,}") print(f" Test samples : {len(X_test):,}") print(f" Fraud rate (test): {y_test.mean()*100:.2f}%\n")
print("=" * 60) print("Step 2: Training Gradient Boosting Classifier...") print("=" * 60)
model = GradientBoostingClassifier( n_estimators=200, learning_rate=0.05, max_depth=4, subsample=0.8, random_state=42 ) model.fit(X_train, y_train) y_prob = model.predict_proba(X_test)[:, 1]
auc_roc = roc_auc_score(y_test, y_prob) auc_pr = average_precision_score(y_test, y_prob) print(f" AUC-ROC : {auc_roc:.4f}") print(f" AUC-PR : {auc_pr:.4f}\n")
print("=" * 60) print("Step 3: Computing metrics across thresholds...") print("=" * 60)
thresholds = np.linspace(0.01, 0.99, 300)
COST_FP = 10 COST_FN = 500
metrics = { 'threshold' : [], 'precision' : [], 'recall' : [], 'fpr' : [], 'fnr' : [], 'f1' : [], 'f2' : [], 'total_cost' : [], 'tp': [], 'fp': [], 'tn': [], 'fn': [] }
for t in thresholds: y_pred = (y_prob >= t).astype(int) tn, fp, fn, tp = confusion_matrix(y_test, y_pred, labels=[0,1]).ravel()
precision = tp / (tp + fp + 1e-9) recall = tp / (tp + fn + 1e-9) fpr = fp / (fp + tn + 1e-9) fnr = fn / (fn + tp + 1e-9) f1 = fbeta_score(y_test, y_pred, beta=1, zero_division=0) f2 = fbeta_score(y_test, y_pred, beta=2, zero_division=0) cost = COST_FP * fp + COST_FN * fn
metrics['threshold'].append(t) metrics['precision'].append(precision) metrics['recall'].append(recall) metrics['fpr'].append(fpr) metrics['fnr'].append(fnr) metrics['f1'].append(f1) metrics['f2'].append(f2) metrics['total_cost'].append(cost) metrics['tp'].append(tp) metrics['fp'].append(fp) metrics['tn'].append(tn) metrics['fn'].append(fn)
df = pd.DataFrame(metrics)
idx_cost = df['total_cost'].idxmin() idx_f1 = df['f1'].idxmax() idx_f2 = df['f2'].idxmax()
opt_cost = df.loc[idx_cost] opt_f1 = df.loc[idx_f1] opt_f2 = df.loc[idx_f2]
print(f" [Min Cost] threshold={opt_cost['threshold']:.3f} " f"FPR={opt_cost['fpr']:.3f} FNR={opt_cost['fnr']:.3f} " f"Cost=${opt_cost['total_cost']:,.0f}") print(f" [Best F1] threshold={opt_f1['threshold']:.3f} " f"FPR={opt_f1['fpr']:.3f} FNR={opt_f1['fnr']:.3f} " f"Cost=${opt_f1['total_cost']:,.0f}") print(f" [Best F2] threshold={opt_f2['threshold']:.3f} " f"FPR={opt_f2['fpr']:.3f} FNR={opt_f2['fnr']:.3f} " f"Cost=${opt_f2['total_cost']:,.0f}\n")
print("=" * 60) print("Step 4: Generating visualizations...") print("=" * 60)
COLORS = { 'primary' : '#2196F3', 'danger' : '#F44336', 'success' : '#4CAF50', 'warning' : '#FF9800', 'purple' : '#9C27B0', 'bg' : '#0D1117', 'grid' : '#21262D', 'text' : '#E6EDF3', }
plt.rcParams.update({ 'figure.facecolor' : COLORS['bg'], 'axes.facecolor' : COLORS['bg'], 'axes.edgecolor' : COLORS['grid'], 'axes.labelcolor' : COLORS['text'], 'xtick.color' : COLORS['text'], 'ytick.color' : COLORS['text'], 'text.color' : COLORS['text'], 'grid.color' : COLORS['grid'], 'legend.facecolor' : '#161B22', 'legend.edgecolor' : COLORS['grid'], 'font.size' : 11, })
def vline(ax, x, label, color): ax.axvline(x, color=color, linestyle='--', linewidth=1.8, alpha=0.9, label=label)

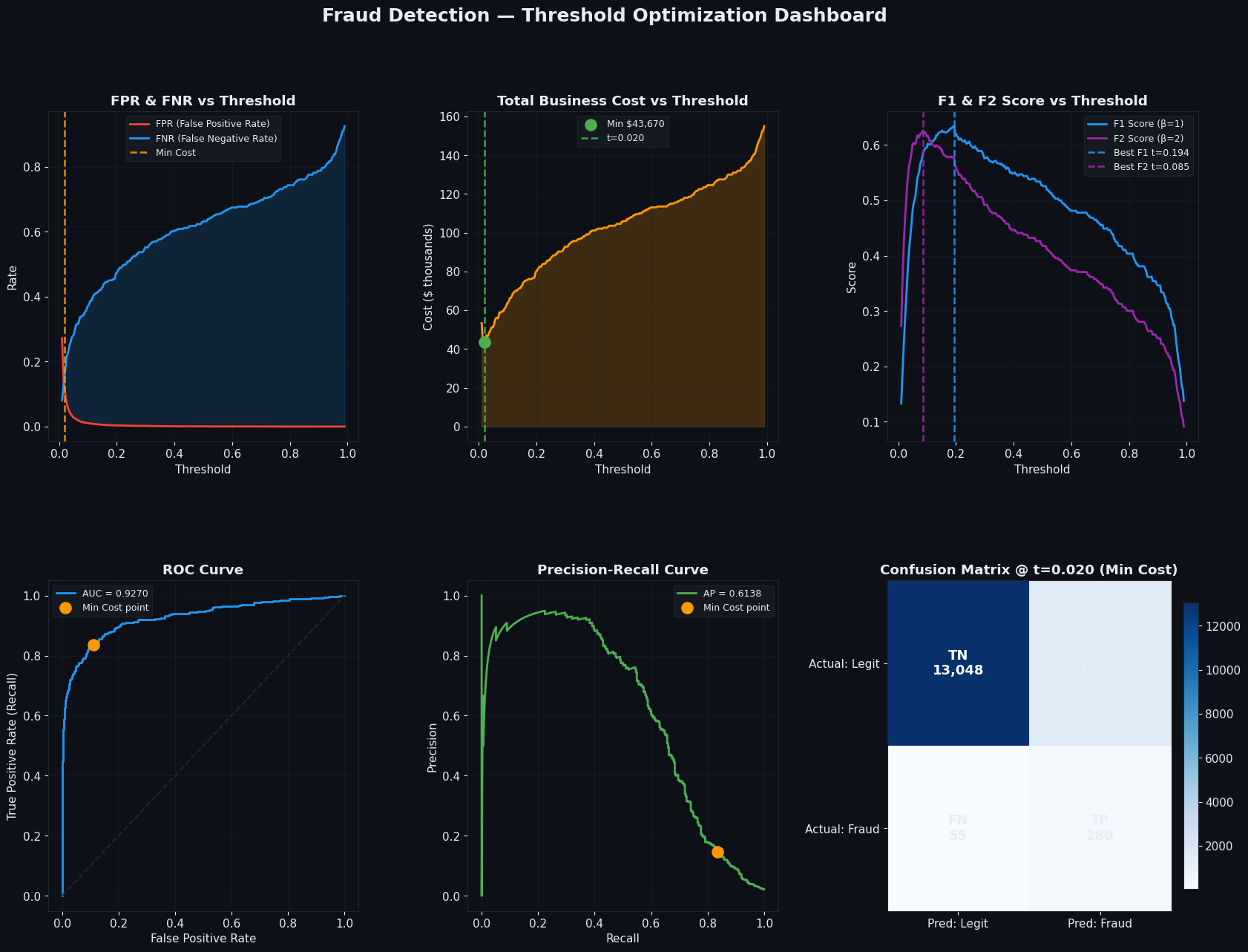

fig = plt.figure(figsize=(20, 14)) fig.suptitle('Fraud Detection — Threshold Optimization Dashboard', fontsize=18, fontweight='bold', color=COLORS['text'], y=0.98) gs = gridspec.GridSpec(2, 3, figure=fig, hspace=0.42, wspace=0.35)
ax1 = fig.add_subplot(gs[0, 0]) ax1.plot(df['threshold'], df['fpr'], color=COLORS['danger'], lw=2, label='FPR (False Positive Rate)') ax1.plot(df['threshold'], df['fnr'], color=COLORS['primary'], lw=2, label='FNR (False Negative Rate)') ax1.fill_between(df['threshold'], df['fpr'], df['fnr'], where=df['fpr'] > df['fnr'], alpha=0.15, color=COLORS['danger']) ax1.fill_between(df['threshold'], df['fpr'], df['fnr'], where=df['fpr'] <= df['fnr'], alpha=0.15, color=COLORS['primary']) vline(ax1, opt_cost['threshold'], 'Min Cost', COLORS['warning']) ax1.set_title('FPR & FNR vs Threshold', fontweight='bold') ax1.set_xlabel('Threshold'); ax1.set_ylabel('Rate') ax1.legend(fontsize=9); ax1.grid(True, alpha=0.4)
ax2 = fig.add_subplot(gs[0, 1]) ax2.plot(df['threshold'], df['total_cost'] / 1e3, color=COLORS['warning'], lw=2) ax2.fill_between(df['threshold'], df['total_cost'] / 1e3, alpha=0.2, color=COLORS['warning']) ax2.scatter(opt_cost['threshold'], opt_cost['total_cost'] / 1e3, color=COLORS['success'], s=120, zorder=5, label=f"Min ${opt_cost['total_cost']:,.0f}") vline(ax2, opt_cost['threshold'], f"t={opt_cost['threshold']:.3f}", COLORS['success']) ax2.set_title('Total Business Cost vs Threshold', fontweight='bold') ax2.set_xlabel('Threshold'); ax2.set_ylabel('Cost ($ thousands)') ax2.legend(fontsize=9); ax2.grid(True, alpha=0.4)
ax3 = fig.add_subplot(gs[0, 2]) ax3.plot(df['threshold'], df['f1'], color=COLORS['primary'], lw=2, label='F1 Score (β=1)') ax3.plot(df['threshold'], df['f2'], color=COLORS['purple'], lw=2, label='F2 Score (β=2)') vline(ax3, opt_f1['threshold'], f"Best F1 t={opt_f1['threshold']:.3f}", COLORS['primary']) vline(ax3, opt_f2['threshold'], f"Best F2 t={opt_f2['threshold']:.3f}", COLORS['purple']) ax3.set_title('F1 & F2 Score vs Threshold', fontweight='bold') ax3.set_xlabel('Threshold'); ax3.set_ylabel('Score') ax3.legend(fontsize=9); ax3.grid(True, alpha=0.4)
fpr_roc, tpr_roc, _ = roc_curve(y_test, y_prob) ax4 = fig.add_subplot(gs[1, 0]) ax4.plot(fpr_roc, tpr_roc, color=COLORS['primary'], lw=2, label=f'AUC = {auc_roc:.4f}') ax4.plot([0, 1], [0, 1], color=COLORS['grid'], lw=1.5, linestyle='--') ax4.scatter(opt_cost['fpr'], opt_cost['recall'], color=COLORS['warning'], s=120, zorder=5, label='Min Cost point') ax4.set_title('ROC Curve', fontweight='bold') ax4.set_xlabel('False Positive Rate'); ax4.set_ylabel('True Positive Rate (Recall)') ax4.legend(fontsize=9); ax4.grid(True, alpha=0.4)
prec_pr, rec_pr, _ = precision_recall_curve(y_test, y_prob) ax5 = fig.add_subplot(gs[1, 1]) ax5.plot(rec_pr, prec_pr, color=COLORS['success'], lw=2, label=f'AP = {auc_pr:.4f}') ax5.scatter(opt_cost['recall'], opt_cost['precision'], color=COLORS['warning'], s=120, zorder=5, label='Min Cost point') ax5.set_title('Precision-Recall Curve', fontweight='bold') ax5.set_xlabel('Recall'); ax5.set_ylabel('Precision') ax5.legend(fontsize=9); ax5.grid(True, alpha=0.4)
ax6 = fig.add_subplot(gs[1, 2]) cm_vals = np.array([ [int(opt_cost['tn']), int(opt_cost['fp'])], [int(opt_cost['fn']), int(opt_cost['tp'])] ]) cm_labels = [['TN', 'FP'], ['FN', 'TP']] im = ax6.imshow(cm_vals, cmap='Blues', aspect='auto') for i in range(2): for j in range(2): ax6.text(j, i, f"{cm_labels[i][j]}\n{cm_vals[i,j]:,}", ha='center', va='center', color='white' if cm_vals[i,j] > cm_vals.max()/2 else COLORS['text'], fontsize=13, fontweight='bold') ax6.set_xticks([0, 1]); ax6.set_yticks([0, 1]) ax6.set_xticklabels(['Pred: Legit', 'Pred: Fraud']) ax6.set_yticklabels(['Actual: Legit', 'Actual: Fraud']) ax6.set_title(f'Confusion Matrix @ t={opt_cost["threshold"]:.3f} (Min Cost)', fontweight='bold') plt.colorbar(im, ax=ax6, fraction=0.046, pad=0.04)
plt.savefig('dashboard.png', dpi=150, bbox_inches='tight', facecolor=COLORS['bg']) plt.show() print(" Dashboard saved.\n")
print("Generating 3D cost surface...")
cost_fp_range = np.linspace(1, 100, 40) cost_fn_range = np.linspace(100, 2000, 40) CFP_grid, CFN_grid = np.meshgrid(cost_fp_range, cost_fn_range)
opt_thresh_grid = np.zeros_like(CFP_grid) min_cost_grid = np.zeros_like(CFP_grid)
fp_arr = df['fp'].values.astype(float) fn_arr = df['fn'].values.astype(float) t_arr = df['threshold'].values
for i in range(CFP_grid.shape[0]): for j in range(CFP_grid.shape[1]): costs = CFP_grid[i, j] * fp_arr + CFN_grid[i, j] * fn_arr idx = np.argmin(costs) opt_thresh_grid[i, j] = t_arr[idx] min_cost_grid[i, j] = costs[idx]
fig3d = plt.figure(figsize=(18, 7)) fig3d.patch.set_facecolor(COLORS['bg']) fig3d.suptitle('3D Analysis: Cost Structure vs Optimal Threshold', fontsize=16, fontweight='bold', color=COLORS['text'])
ax_l = fig3d.add_subplot(121, projection='3d') ax_l.set_facecolor(COLORS['bg']) surf1 = ax_l.plot_surface(CFP_grid, CFN_grid, opt_thresh_grid, cmap='plasma', alpha=0.85, edgecolor='none') ax_l.set_xlabel('Cost FP ($)', labelpad=10) ax_l.set_ylabel('Cost FN ($)', labelpad=10) ax_l.set_zlabel('Optimal Threshold', labelpad=10) ax_l.set_title('Optimal Threshold\nfor Each Cost Pair', color=COLORS['text'], pad=12) ax_l.tick_params(colors=COLORS['text']) fig3d.colorbar(surf1, ax=ax_l, shrink=0.5, label='Threshold')
ax_r = fig3d.add_subplot(122, projection='3d') ax_r.set_facecolor(COLORS['bg']) surf2 = ax_r.plot_surface(CFP_grid, CFN_grid, min_cost_grid / 1e3, cmap='inferno', alpha=0.85, edgecolor='none') ax_r.set_xlabel('Cost FP ($)', labelpad=10) ax_r.set_ylabel('Cost FN ($)', labelpad=10) ax_r.set_zlabel('Min Total Cost ($ k)', labelpad=10) ax_r.set_title('Minimum Total Cost\nfor Each Cost Pair', color=COLORS['text'], pad=12) ax_r.tick_params(colors=COLORS['text']) fig3d.colorbar(surf2, ax=ax_r, shrink=0.5, label='Cost ($k)')
plt.tight_layout() plt.savefig('3d_surface.png', dpi=150, bbox_inches='tight', facecolor=COLORS['bg']) plt.show() print(" 3D surface saved.\n")
print("Generating sensitivity analysis...")
fig_s, axes = plt.subplots(1, 2, figsize=(16, 6)) fig_s.patch.set_facecolor(COLORS['bg']) fig_s.suptitle('Threshold Sensitivity Analysis', fontsize=15, fontweight='bold', color=COLORS['text'])

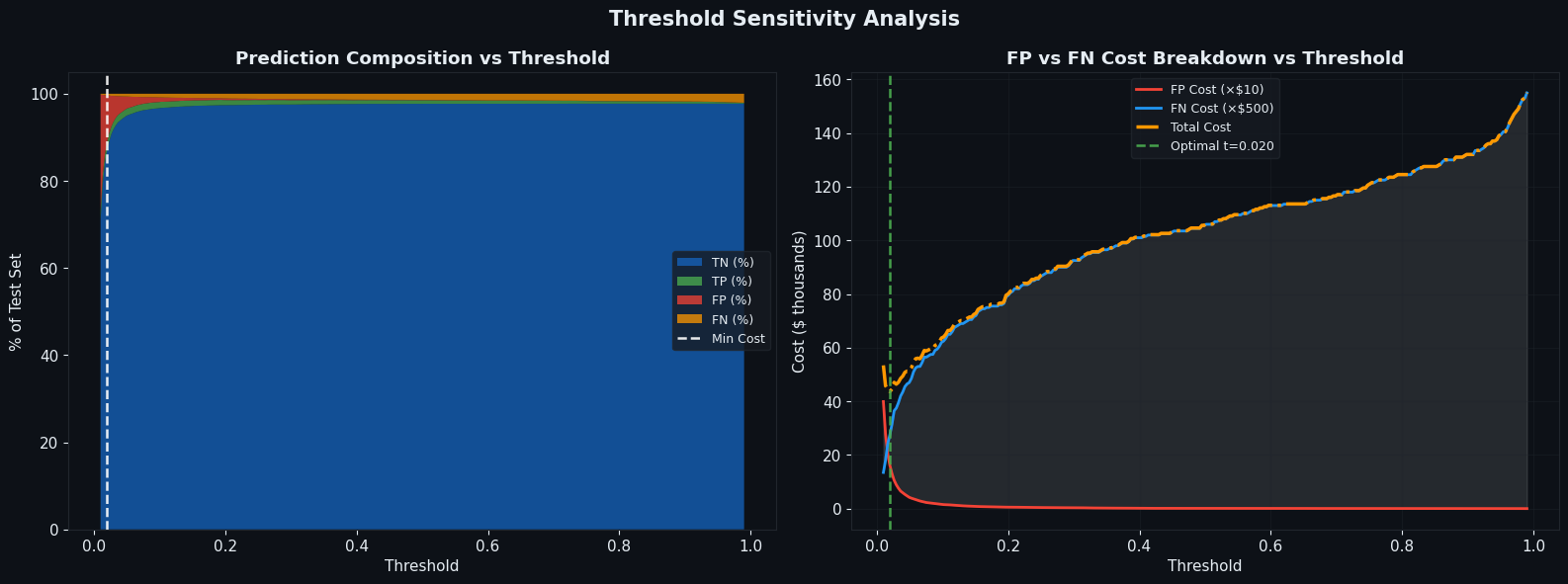

ax_s1 = axes[0] ax_s1.set_facecolor(COLORS['bg']) tp_pct = df['tp'] / len(y_test) * 100 fp_pct = df['fp'] / len(y_test) * 100 fn_pct = df['fn'] / len(y_test) * 100 tn_pct = df['tn'] / len(y_test) * 100
ax_s1.stackplot(df['threshold'], tn_pct, tp_pct, fp_pct, fn_pct, labels=['TN (%)','TP (%)','FP (%)','FN (%)'], colors=['#1565C0','#4CAF50','#F44336','#FF9800'], alpha=0.75) vline(ax_s1, opt_cost['threshold'], 'Min Cost', 'white') ax_s1.set_xlabel('Threshold'); ax_s1.set_ylabel('% of Test Set') ax_s1.set_title('Prediction Composition vs Threshold', fontweight='bold', color=COLORS['text']) ax_s1.legend(loc='center right', fontsize=9) ax_s1.tick_params(colors=COLORS['text'])
ax_s2 = axes[1] ax_s2.set_facecolor(COLORS['bg']) fp_cost_arr = COST_FP * df['fp'] fn_cost_arr = COST_FN * df['fn'] ax_s2.plot(df['threshold'], fp_cost_arr / 1e3, color=COLORS['danger'], lw=2, label=f'FP Cost (×${COST_FP})') ax_s2.plot(df['threshold'], fn_cost_arr / 1e3, color=COLORS['primary'], lw=2, label=f'FN Cost (×${COST_FN})') ax_s2.plot(df['threshold'], df['total_cost'] / 1e3, color=COLORS['warning'], lw=2.5, linestyle='-.', label='Total Cost') ax_s2.fill_between(df['threshold'], fp_cost_arr / 1e3, fn_cost_arr / 1e3, alpha=0.1, color='white') vline(ax_s2, opt_cost['threshold'], f"Optimal t={opt_cost['threshold']:.3f}", COLORS['success']) ax_s2.set_xlabel('Threshold'); ax_s2.set_ylabel('Cost ($ thousands)') ax_s2.set_title('FP vs FN Cost Breakdown vs Threshold', fontweight='bold', color=COLORS['text']) ax_s2.legend(fontsize=9); ax_s2.grid(True, alpha=0.4) ax_s2.tick_params(colors=COLORS['text'])
plt.tight_layout() plt.savefig('sensitivity.png', dpi=150, bbox_inches='tight', facecolor=COLORS['bg']) plt.show() print(" Sensitivity analysis saved.\n")
print("=" * 60) print("SUMMARY: Optimal Thresholds Comparison") print("=" * 60) summary = pd.DataFrame({ 'Strategy' : ['Default (0.5)', 'Min Business Cost', 'Best F1', 'Best F2'], 'Threshold' : [0.5, round(opt_cost['threshold'], 3), round(opt_f1['threshold'], 3), round(opt_f2['threshold'], 3)], 'FPR' : [round(df.loc[(df['threshold'] - 0.5).abs().idxmin(), 'fpr'], 3), round(opt_cost['fpr'], 3), round(opt_f1['fpr'], 3), round(opt_f2['fpr'], 3)], 'FNR' : [round(df.loc[(df['threshold'] - 0.5).abs().idxmin(), 'fnr'], 3), round(opt_cost['fnr'], 3), round(opt_f1['fnr'], 3), round(opt_f2['fnr'], 3)], 'Total Cost ($)': [ f"{df.loc[(df['threshold']-0.5).abs().idxmin(),'total_cost']:,.0f}", f"{opt_cost['total_cost']:,.0f}", f"{opt_f1['total_cost']:,.0f}", f"{opt_f2['total_cost']:,.0f}", ] }) print(summary.to_string(index=False)) print("\nDone! All plots displayed above.")
|
