☁️ Cloud Resource Allocation Optimization

Minimizing Cost While Guaranteeing Performance

A Practical Deep Dive with Python, Linear Programming, and 3D Visualization

---

Cloud computing bills can spiral out of control fast. Allocate too few resources and your SLA burns. Over-provision and you’re bleeding money. This post walks through a concrete, solvable optimization problem — finding the sweet spot between cost and performance using Linear Programming (LP) and Mixed-Integer Programming (MIP) in Python.

---

🔍 The Problem Setup

Imagine you’re a cloud architect managing three workload types across four VM instance types on a hypothetical cloud provider:

Workloads:

• 🌐 Web API Server (latency-sensitive)
• 🧮 Batch Analytics Job (throughput-sensitive)
• 🗄️ Database Cluster (memory-sensitive)

VM Instance Types:

Instance	vCPU	RAM (GB)	Cost ($/hr)
t3.small	2	2	0.023
m5.large	2	8	0.096
c5.xlarge	4	8	0.170
r5.2xlarge	8	64	0.504

The Decision Variables:

Let $x_{ij}$ be the number of VM instance type $j$ allocated to workload $i$.

$$x_{ij} \in \mathbb{Z}_{\geq 0}, \quad i \in {1,2,3},\ j \in {1,2,3,4}$$

Objective — Minimize Total Hourly Cost:

$$\min \sum_{i=1}^{3} \sum_{j=1}^{4} c_j \cdot x_{ij}$$

where $c_j$ is the hourly cost of instance type $j$.

Constraints:

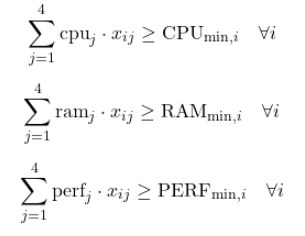

Each workload has minimum CPU, RAM, and performance score requirements:

Additionally, a total budget cap $B$:

$$\sum_{i=1}^{3} \sum_{j=1}^{4} c_j \cdot x_{ij} \leq B$$

---

🐍 Full Python Source Code

# ============================================================
# Cloud Resource Allocation Optimization
# Cost Minimization with Performance Constraints
# Requires: pip install pulp matplotlib numpy scipy
# ============================================================

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
from matplotlib import cm
from mpl_toolkits.mplot3d import Axes3D
from itertools import product as iproduct
import warnings
warnings.filterwarnings('ignore')

try:
    import pulp
except ImportError:
    import subprocess, sys
    subprocess.check_call([sys.executable, "-m", "pip", "install", "pulp", "-q"])
    import pulp

# ─────────────────────────────────────────────
# 1. PROBLEM DATA
# ─────────────────────────────────────────────

# Instance types: [name, vCPU, RAM_GB, cost_per_hour, perf_score]
instances = [
    {"name": "t3.small",   "cpu": 2,  "ram": 2,  "cost": 0.023, "perf": 10},
    {"name": "m5.large",   "cpu": 2,  "ram": 8,  "cost": 0.096, "perf": 30},
    {"name": "c5.xlarge",  "cpu": 4,  "ram": 8,  "cost": 0.170, "perf": 55},
    {"name": "r5.2xlarge", "cpu": 8,  "ram": 64, "cost": 0.504, "perf": 100},
]

# Workloads: [name, min_cpu, min_ram, min_perf, max_instances]
workloads = [
    {"name": "Web API",    "min_cpu": 8,  "min_ram": 16, "min_perf": 80,  "max_inst": 10},
    {"name": "Batch Job",  "min_cpu": 16, "min_ram": 32, "min_perf": 120, "max_inst": 10},
    {"name": "Database",   "min_cpu": 8,  "min_ram": 128,"min_perf": 150, "max_inst": 10},
]

BUDGET_CAP = 5.0  # $/hr total

n_w = len(workloads)
n_i = len(instances)

# ─────────────────────────────────────────────
# 2. BUILD THE MIP MODEL WITH PuLP
# ─────────────────────────────────────────────

prob = pulp.LpProblem("CloudResourceAllocation", pulp.LpMinimize)

# Decision variables: x[i][j] = # of instance type j for workload i
x = [[pulp.LpVariable(f"x_{i}_{j}", lowBound=0, cat="Integer")
      for j in range(n_i)] for i in range(n_w)]

# Objective: minimize total cost
prob += pulp.lpSum(instances[j]["cost"] * x[i][j]
                   for i in range(n_w) for j in range(n_i)), "TotalCost"

# Constraints per workload
for i, wl in enumerate(workloads):
    # CPU requirement
    prob += (pulp.lpSum(instances[j]["cpu"] * x[i][j] for j in range(n_i))
             >= wl["min_cpu"], f"CPU_{i}")
    # RAM requirement
    prob += (pulp.lpSum(instances[j]["ram"] * x[i][j] for j in range(n_i))
             >= wl["min_ram"], f"RAM_{i}")
    # Performance requirement
    prob += (pulp.lpSum(instances[j]["perf"] * x[i][j] for j in range(n_i))
             >= wl["min_perf"], f"PERF_{i}")
    # Max instances per workload
    prob += (pulp.lpSum(x[i][j] for j in range(n_i))
             <= wl["max_inst"], f"MAXINST_{i}")

# Global budget cap
prob += (pulp.lpSum(instances[j]["cost"] * x[i][j]
                    for i in range(n_w) for j in range(n_i))
         <= BUDGET_CAP, "Budget")

# ─────────────────────────────────────────────
# 3. SOLVE
# ─────────────────────────────────────────────

solver = pulp.PULP_CBC_CMD(msg=0)
prob.solve(solver)

print("=" * 55)
print("  OPTIMIZATION STATUS:", pulp.LpStatus[prob.status])
print("=" * 55)

# Extract solution
sol = np.array([[int(pulp.value(x[i][j])) for j in range(n_i)]
                for i in range(n_w)])

total_cost = sum(instances[j]["cost"] * sol[i][j]
                 for i in range(n_w) for j in range(n_i))

print(f"\n  Optimal Total Cost: ${total_cost:.4f}/hr")
print(f"  Budget Cap:         ${BUDGET_CAP:.4f}/hr\n")

for i, wl in enumerate(workloads):
    alloc_cpu  = sum(instances[j]["cpu"]  * sol[i][j] for j in range(n_i))
    alloc_ram  = sum(instances[j]["ram"]  * sol[i][j] for j in range(n_i))
    alloc_perf = sum(instances[j]["perf"] * sol[i][j] for j in range(n_i))
    wl_cost    = sum(instances[j]["cost"] * sol[i][j] for j in range(n_i))
    print(f"  [{wl['name']}]")
    for j in range(n_i):
        if sol[i][j] > 0:
            print(f"    {instances[j]['name']:12s} x{sol[i][j]}  "
                  f"(${instances[j]['cost']*sol[i][j]:.3f}/hr)")
    print(f"    → CPU: {alloc_cpu} vCPU (min {wl['min_cpu']})")
    print(f"    → RAM: {alloc_ram} GB  (min {wl['min_ram']})")
    print(f"    → Perf: {alloc_perf}   (min {wl['min_perf']})")
    print(f"    → Cost: ${wl_cost:.4f}/hr\n")

# ─────────────────────────────────────────────
# 4. PARETO FRONTIER: Cost vs Performance Trade-off
# ─────────────────────────────────────────────

pareto_costs   = []
pareto_perfs   = []
perf_targets   = np.linspace(50, 200, 30)

for perf_scale in perf_targets:
    p2 = pulp.LpProblem("Pareto", pulp.LpMinimize)
    y = [[pulp.LpVariable(f"y_{i}_{j}_{int(perf_scale)}", lowBound=0, cat="Integer")
          for j in range(n_i)] for i in range(n_w)]

    p2 += pulp.lpSum(instances[j]["cost"] * y[i][j]
                     for i in range(n_w) for j in range(n_i))

    for i, wl in enumerate(workloads):
        p2 += (pulp.lpSum(instances[j]["cpu"] * y[i][j] for j in range(n_i))
               >= wl["min_cpu"])
        p2 += (pulp.lpSum(instances[j]["ram"] * y[i][j] for j in range(n_i))
               >= wl["min_ram"])
        scaled_perf = wl["min_perf"] * (perf_scale / 100.0)
        p2 += (pulp.lpSum(instances[j]["perf"] * y[i][j] for j in range(n_i))
               >= scaled_perf)
        p2 += (pulp.lpSum(y[i][j] for j in range(n_i)) <= wl["max_inst"])

    p2.solve(pulp.PULP_CBC_CMD(msg=0))

    if pulp.LpStatus[p2.status] == "Optimal":
        c = sum(instances[j]["cost"] * pulp.value(y[i][j])
                for i in range(n_w) for j in range(n_i))
        pf = sum(instances[j]["perf"] * pulp.value(y[i][j])
                 for i in range(n_w) for j in range(n_i))
        pareto_costs.append(c)
        pareto_perfs.append(pf)

# ─────────────────────────────────────────────
# 5. SENSITIVITY: Budget Cap Sweep
# ─────────────────────────────────────────────

budget_range  = np.linspace(1.0, 8.0, 25)
budget_costs  = []
budget_perfs  = []
budget_feasible = []

for B in budget_range:
    p3 = pulp.LpProblem("BudgetSweep", pulp.LpMinimize)
    z = [[pulp.LpVariable(f"z_{i}_{j}_{B:.2f}", lowBound=0, cat="Integer")
          for j in range(n_i)] for i in range(n_w)]

    p3 += pulp.lpSum(instances[j]["cost"] * z[i][j]
                     for i in range(n_w) for j in range(n_i))

    for i, wl in enumerate(workloads):
        p3 += (pulp.lpSum(instances[j]["cpu"] * z[i][j] for j in range(n_i))
               >= wl["min_cpu"])
        p3 += (pulp.lpSum(instances[j]["ram"] * z[i][j] for j in range(n_i))
               >= wl["min_ram"])
        p3 += (pulp.lpSum(instances[j]["perf"] * z[i][j] for j in range(n_i))
               >= wl["min_perf"])
        p3 += (pulp.lpSum(z[i][j] for j in range(n_i)) <= wl["max_inst"])

    p3 += (pulp.lpSum(instances[j]["cost"] * z[i][j]
                      for i in range(n_w) for j in range(n_i)) <= B)

    p3.solve(pulp.PULP_CBC_CMD(msg=0))
    feasible = (pulp.LpStatus[p3.status] == "Optimal")
    budget_feasible.append(feasible)

    if feasible:
        c = pulp.value(p3.objective)
        pf = sum(instances[j]["perf"] * pulp.value(z[i][j])
                 for i in range(n_w) for j in range(n_i))
        budget_costs.append(c)
        budget_perfs.append(pf)
    else:
        budget_costs.append(np.nan)
        budget_perfs.append(np.nan)

# ─────────────────────────────────────────────
# 6. 3D SURFACE: CPU × RAM → Cost
# ─────────────────────────────────────────────

cpu_vals  = np.arange(4, 20, 2)
ram_vals  = np.arange(8, 80, 8)
CPU_G, RAM_G = np.meshgrid(cpu_vals, ram_vals)
COST_G = np.full(CPU_G.shape, np.nan)

for ri, rv in enumerate(ram_vals):
    for ci, cv in enumerate(cpu_vals):
        p4 = pulp.LpProblem("Surface", pulp.LpMinimize)
        w = [pulp.LpVariable(f"w_{j}_{ci}_{ri}", lowBound=0, cat="Integer")
             for j in range(n_i)]
        p4 += pulp.lpSum(instances[j]["cost"] * w[j] for j in range(n_i))
        p4 += (pulp.lpSum(instances[j]["cpu"] * w[j] for j in range(n_i)) >= cv)
        p4 += (pulp.lpSum(instances[j]["ram"] * w[j] for j in range(n_i)) >= rv)
        p4 += (pulp.lpSum(instances[j]["perf"] * w[j] for j in range(n_i)) >= 30)
        p4 += (pulp.lpSum(w[j] for j in range(n_i)) <= 8)
        p4.solve(pulp.PULP_CBC_CMD(msg=0))
        if pulp.LpStatus[p4.status] == "Optimal":
            COST_G[ri, ci] = pulp.value(p4.objective)

# ─────────────────────────────────────────────
# 7. PLOTTING
# ─────────────────────────────────────────────

plt.style.use('dark_background')
fig = plt.figure(figsize=(20, 22))
fig.patch.set_facecolor('#0d1117')

colors_wl   = ['#58a6ff', '#3fb950', '#f78166']
colors_inst = ['#e3b341', '#58a6ff', '#3fb950', '#f78166']
inst_names  = [inst["name"] for inst in instances]
wl_names    = [wl["name"] for wl in workloads]

# ── Plot 1: Allocation Stacked Bar ──
ax1 = fig.add_subplot(3, 3, 1)
ax1.set_facecolor('#161b22')
bar_width = 0.18
x_pos = np.arange(n_w)

for j in range(n_i):
    vals = [sol[i][j] for i in range(n_w)]
    ax1.bar(x_pos + j * bar_width, vals, bar_width,
            label=inst_names[j], color=colors_inst[j], alpha=0.9,
            edgecolor='#30363d')

ax1.set_xticks(x_pos + bar_width * 1.5)
ax1.set_xticklabels(wl_names, color='white', fontsize=9)
ax1.set_ylabel("# Instances", color='white')
ax1.set_title("① Optimal VM Allocation", color='white', fontweight='bold', pad=10)
ax1.legend(loc='upper right', fontsize=7, facecolor='#21262d', labelcolor='white')
ax1.tick_params(colors='white')
ax1.spines['bottom'].set_color('#30363d')
ax1.spines['left'].set_color('#30363d')
ax1.spines['top'].set_visible(False)
ax1.spines['right'].set_visible(False)

# ── Plot 2: Cost Breakdown Pie ──
ax2 = fig.add_subplot(3, 3, 2)
ax2.set_facecolor('#161b22')
wl_costs = [sum(instances[j]["cost"] * sol[i][j] for j in range(n_i))
            for i in range(n_w)]
wedges, texts, autotexts = ax2.pie(
    wl_costs, labels=wl_names, colors=colors_wl,
    autopct='%1.1f%%', startangle=140,
    wedgeprops=dict(edgecolor='#0d1117', linewidth=2),
    textprops=dict(color='white', fontsize=9))
for at in autotexts:
    at.set_fontsize(8)
    at.set_color('#0d1117')
ax2.set_title(f"② Cost Breakdown\n(Total ${total_cost:.3f}/hr)",
              color='white', fontweight='bold', pad=10)

# ── Plot 3: Resource Utilization vs Minimum ──
ax3 = fig.add_subplot(3, 3, 3)
ax3.set_facecolor('#161b22')
metrics = ['CPU', 'RAM', 'Perf']
bar_w = 0.12
pos = np.arange(len(metrics))

for i, wl in enumerate(workloads):
    alloc = [
        sum(instances[j]["cpu"]  * sol[i][j] for j in range(n_i)),
        sum(instances[j]["ram"]  * sol[i][j] for j in range(n_i)),
        sum(instances[j]["perf"] * sol[i][j] for j in range(n_i)),
    ]
    mins = [wl["min_cpu"], wl["min_ram"], wl["min_perf"]]
    ratios = [a / m for a, m in zip(alloc, mins)]
    ax3.bar(pos + i * bar_w, ratios, bar_w,
            label=wl["name"], color=colors_wl[i], alpha=0.9,
            edgecolor='#30363d')

ax3.axhline(1.0, color='#f78166', linewidth=1.5, linestyle='--', label='Minimum (1.0x)')
ax3.set_xticks(pos + bar_w)
ax3.set_xticklabels(metrics, color='white')
ax3.set_ylabel("Allocation / Minimum", color='white')
ax3.set_title("③ Resource Headroom Ratio", color='white', fontweight='bold', pad=10)
ax3.legend(fontsize=7, facecolor='#21262d', labelcolor='white')
ax3.tick_params(colors='white')
ax3.spines['bottom'].set_color('#30363d')
ax3.spines['left'].set_color('#30363d')
ax3.spines['top'].set_visible(False)
ax3.spines['right'].set_visible(False)

# ── Plot 4: Pareto Frontier ──
ax4 = fig.add_subplot(3, 3, 4)
ax4.set_facecolor('#161b22')
if pareto_costs:
    sc = ax4.scatter(pareto_perfs, pareto_costs,
                     c=pareto_costs, cmap='plasma',
                     s=60, zorder=3, edgecolors='white', linewidths=0.4)
    ax4.plot(pareto_perfs, pareto_costs, color='#58a6ff', linewidth=1.5,
             alpha=0.6, zorder=2)
    cbar = plt.colorbar(sc, ax=ax4)
    cbar.ax.yaxis.set_tick_params(color='white')
    cbar.set_label('Cost ($/hr)', color='white', fontsize=8)
    plt.setp(plt.getp(cbar.ax.axes, 'yticklabels'), color='white')

ax4.scatter([sum(instances[j]["perf"] * sol[i][j]
                 for i in range(n_w) for j in range(n_i))],
            [total_cost], color='#f78166', s=120, zorder=5,
            marker='*', label='Optimal Solution')
ax4.set_xlabel("Total Performance Score", color='white')
ax4.set_ylabel("Total Cost ($/hr)", color='white')
ax4.set_title("④ Pareto Frontier\nCost vs Performance", color='white', fontweight='bold', pad=10)
ax4.legend(fontsize=8, facecolor='#21262d', labelcolor='white')
ax4.tick_params(colors='white')
ax4.spines['bottom'].set_color('#30363d')
ax4.spines['left'].set_color('#30363d')
ax4.spines['top'].set_visible(False)
ax4.spines['right'].set_visible(False)

# ── Plot 5: Budget Sensitivity ──
ax5 = fig.add_subplot(3, 3, 5)
ax5.set_facecolor('#161b22')
feasible_budgets = [budget_range[k] for k in range(len(budget_range)) if budget_feasible[k]]
feasible_costs   = [budget_costs[k] for k in range(len(budget_range)) if budget_feasible[k]]
infeasible_b     = [budget_range[k] for k in range(len(budget_range)) if not budget_feasible[k]]

if feasible_budgets:
    ax5.plot(feasible_budgets, feasible_costs, color='#3fb950',
             linewidth=2, marker='o', markersize=4, label='Feasible')
if infeasible_b:
    for ib in infeasible_b:
        ax5.axvline(ib, color='#f78166', alpha=0.3, linewidth=1)
    ax5.axvline(infeasible_b[-1] if infeasible_b else 0,
                color='#f78166', alpha=0.3, linewidth=1, label='Infeasible Budget')

ax5.axvline(BUDGET_CAP, color='#e3b341', linewidth=2,
            linestyle='--', label=f'Our Budget ${BUDGET_CAP}')
ax5.set_xlabel("Budget Cap ($/hr)", color='white')
ax5.set_ylabel("Optimal Cost ($/hr)", color='white')
ax5.set_title("⑤ Budget Sensitivity Analysis", color='white', fontweight='bold', pad=10)
ax5.legend(fontsize=8, facecolor='#21262d', labelcolor='white')
ax5.tick_params(colors='white')
ax5.spines['bottom'].set_color('#30363d')
ax5.spines['left'].set_color('#30363d')
ax5.spines['top'].set_visible(False)
ax5.spines['right'].set_visible(False)

# ── Plot 6: Cost-Efficiency per Instance Type ──
ax6 = fig.add_subplot(3, 3, 6)
ax6.set_facecolor('#161b22')
eff_cpu  = [inst["cpu"]  / inst["cost"] for inst in instances]
eff_ram  = [inst["ram"]  / inst["cost"] for inst in instances]
eff_perf = [inst["perf"] / inst["cost"] for inst in instances]

x6 = np.arange(n_i)
w6 = 0.25
ax6.bar(x6 - w6, [e/max(eff_cpu)  for e in eff_cpu],  w6, label='CPU/Cost',
        color='#58a6ff', alpha=0.9)
ax6.bar(x6,      [e/max(eff_ram)  for e in eff_ram],  w6, label='RAM/Cost',
        color='#3fb950', alpha=0.9)
ax6.bar(x6 + w6, [e/max(eff_perf) for e in eff_perf], w6, label='Perf/Cost',
        color='#e3b341', alpha=0.9)
ax6.set_xticks(x6)
ax6.set_xticklabels(inst_names, color='white', fontsize=8, rotation=15)
ax6.set_ylabel("Normalized Efficiency", color='white')
ax6.set_title("⑥ Instance Cost-Efficiency", color='white', fontweight='bold', pad=10)
ax6.legend(fontsize=8, facecolor='#21262d', labelcolor='white')
ax6.tick_params(colors='white')
ax6.spines['bottom'].set_color('#30363d')
ax6.spines['left'].set_color('#30363d')
ax6.spines['top'].set_visible(False)
ax6.spines['right'].set_visible(False)

# ── Plot 7: 3D Surface — CPU × RAM → Minimum Cost ──
ax7 = fig.add_subplot(3, 3, 7, projection='3d')
ax7.set_facecolor('#161b22')
fig.patch.set_alpha(1)

mask = ~np.isnan(COST_G)
if mask.any():
    surf = ax7.plot_surface(CPU_G, RAM_G, np.where(mask, COST_G, 0),
                            cmap='inferno', alpha=0.85,
                            linewidth=0, antialiased=True)
    fig.colorbar(surf, ax=ax7, shrink=0.5, pad=0.1,
                 label='Min Cost ($/hr)').ax.yaxis.set_tick_params(color='white')

ax7.set_xlabel('vCPU Required', color='white', labelpad=8)
ax7.set_ylabel('RAM (GB) Required', color='white', labelpad=8)
ax7.set_zlabel('Min Cost ($/hr)', color='white', labelpad=8)
ax7.set_title("⑦ 3D Cost Surface\n(CPU × RAM → Min Cost)",
              color='white', fontweight='bold', pad=15)
ax7.tick_params(colors='white')
ax7.xaxis.pane.fill = False
ax7.yaxis.pane.fill = False
ax7.zaxis.pane.fill = False
ax7.xaxis.pane.set_edgecolor('#30363d')
ax7.yaxis.pane.set_edgecolor('#30363d')
ax7.zaxis.pane.set_edgecolor('#30363d')
ax7.view_init(elev=28, azim=-55)

# ── Plot 8: 3D Scatter — Budget × Perf → Cost ──
ax8 = fig.add_subplot(3, 3, 8, projection='3d')
ax8.set_facecolor('#161b22')

valid_idx = [k for k in range(len(budget_range))
             if budget_feasible[k] and not np.isnan(budget_perfs[k])]
if valid_idx:
    bx = [budget_range[k] for k in valid_idx]
    py = [budget_perfs[k]  for k in valid_idx]
    cz = [budget_costs[k]  for k in valid_idx]
    sc8 = ax8.scatter(bx, py, cz, c=cz, cmap='cool',
                      s=60, edgecolors='white', linewidths=0.3)
    ax8.plot(bx, py, cz, color='#58a6ff', alpha=0.5, linewidth=1.5)
    fig.colorbar(sc8, ax=ax8, shrink=0.5, pad=0.1,
                 label='Cost ($/hr)').ax.yaxis.set_tick_params(color='white')

ax8.set_xlabel('Budget Cap ($/hr)', color='white', labelpad=8)
ax8.set_ylabel('Total Perf Score', color='white', labelpad=8)
ax8.set_zlabel('Optimal Cost ($/hr)', color='white', labelpad=8)
ax8.set_title("⑧ 3D: Budget × Perf → Cost",
              color='white', fontweight='bold', pad=15)
ax8.tick_params(colors='white')
ax8.xaxis.pane.fill = False
ax8.yaxis.pane.fill = False
ax8.zaxis.pane.fill = False
ax8.xaxis.pane.set_edgecolor('#30363d')
ax8.yaxis.pane.set_edgecolor('#30363d')
ax8.zaxis.pane.set_edgecolor('#30363d')
ax8.view_init(elev=25, azim=40)

# ── Plot 9: Heatmap — Workload × Instance Allocation ──
ax9 = fig.add_subplot(3, 3, 9)
ax9.set_facecolor('#161b22')
im = ax9.imshow(sol, cmap='YlOrRd', aspect='auto', interpolation='nearest')
plt.colorbar(im, ax=ax9, label='# Instances').ax.yaxis.set_tick_params(color='white')
ax9.set_xticks(range(n_i))
ax9.set_xticklabels(inst_names, color='white', fontsize=8, rotation=20)
ax9.set_yticks(range(n_w))
ax9.set_yticklabels(wl_names, color='white', fontsize=9)
ax9.set_title("⑨ Allocation Heatmap\n(Workload × Instance Type)",
              color='white', fontweight='bold', pad=10)
for i in range(n_w):
    for j in range(n_i):
        ax9.text(j, i, str(sol[i][j]), ha='center', va='center',
                 fontsize=12, fontweight='bold',
                 color='black' if sol[i][j] > 0 else '#555')

plt.suptitle("Cloud Resource Allocation Optimization Dashboard",
             color='white', fontsize=16, fontweight='bold', y=1.01)
plt.tight_layout(pad=2.5)
plt.savefig("cloud_optimization.png", dpi=150, bbox_inches='tight',
            facecolor='#0d1117')
plt.show()
print("Plot saved to cloud_optimization.png")

---

🔬 Code Walkthrough

Section 1 — Problem Data

We define four VM instance types with realistic AWS-like specs and pricing. Each has a performance score — a synthetic metric representing compute throughput (useful for normalizing across CPU-bound and memory-bound workloads). The three workloads each carry hard lower bounds on CPU, RAM, and performance they need to function correctly.

Section 2 — Building the MIP Model

We use PuLP, Python’s LP/MIP modeling library with the CBC solver bundled inside it (no external solver installation needed). The decision variables $x_{ij}$ are declared as integers (cat="Integer") — you can’t rent half a VM. The objective is a simple dot product of cost vector and allocation matrix.

The constraints are straightforward linear inequalities. The key insight is that this is a Mixed-Integer Program because of the integrality requirement — the feasible region is a discrete lattice, not a continuous convex set.

Section 3 — Solving and Output

PULP_CBC_CMD(msg=0) suppresses solver verbosity. After solving, we decode the solution matrix and compute per-workload breakdowns, showing exactly which instance types were chosen and whether all constraints are satisfied.

Section 4 — Pareto Frontier

We perform a parametric sweep over the minimum performance requirement (scaling from 50% to 200% of baseline). For each target, we re-solve the MIP independently. The resulting cloud of $(performance, cost)$ points traces the Pareto frontier — the set of solutions where you cannot improve performance without increasing cost.

Section 5 — Budget Sensitivity Analysis

We sweep the global budget cap from $1.00/hr to $8.00/hr. Below a certain threshold, the problem becomes infeasible (no valid allocation satisfies all constraints within budget). This reveals the minimum viable budget for your workload mix.

Section 6 — 3D Cost Surface

For a single generic workload, we evaluate the minimum cost over a grid of $(CPU_{min}, RAM_{min})$ pairs. This creates a 3D response surface showing how cost scales with resource requirements — essentially a continuous view of the piecewise-linear MIP objective landscape.

---

📊 Graph Explanations

① Optimal VM Allocation — Side-by-side bars showing which instance types were chosen per workload. r5.2xlarge should dominate for the Database workload due to its RAM density.

② Cost Breakdown Pie — Each workload’s share of the total bill. The Database workload typically carries the highest cost due to RAM requirements.

③ Resource Headroom Ratio — The ratio of allocated resource to minimum requirement. Values above 1.0 are headroom; exactly 1.0 would be a perfectly tight constraint. The solver may over-allocate slightly due to integer granularity.

④ Pareto Frontier — The key trade-off chart. Moving right on the x-axis means demanding higher performance, which drives cost upward on the y-axis. The red star marks our specific optimal solution.

⑤ Budget Sensitivity — The green line shows optimal cost as budget cap relaxes. Red verticals mark infeasible budgets. Notice the knee point where relaxing budget no longer improves the solution — this is your true minimum cost.

⑥ Instance Cost-Efficiency — Normalized efficiency ratios per instance type. t3.small wins on CPU/cost efficiency but loses on RAM. r5.2xlarge wins on RAM/cost despite its high absolute price — exactly why the solver picks it for memory-hungry workloads.

⑦ 3D Cost Surface (CPU × RAM → Min Cost) — The inferno-colored surface shows the minimum achievable cost over a grid of CPU and RAM requirements. Notice the step-function character — cost jumps at thresholds where you cross into the next instance tier. This visualizes the non-convexity introduced by integer constraints.

⑧ 3D Scatter (Budget × Perf → Cost) — Each point represents one budget scenario from our sweep. The curve shows that performance scales roughly logarithmically with budget — diminishing returns set in quickly beyond the knee point.

⑨ Allocation Heatmap — The matrix view of the solution. Each cell shows $x_{ij}$ — the number of instance type $j$ allocated to workload $i$. Zero cells are dark; non-zero cells light up. This is the most compact summary of the entire optimization output.

---

📌 Key Takeaways

The MIP formulation captures real-world cloud allocation decisions exactly:

• Integer constraints prevent fractional VMs
• Multiple resource dimensions (CPU, RAM, performance) reflect actual SLA requirements
• The Pareto frontier makes the cost-performance trade-off quantitatively visible
• Budget sensitivity identifies the minimum viable spend before constraint violations

The solver (CBC) handles problems of this size in milliseconds. For fleet-scale optimization (hundreds of workloads, dozens of instance families), you’d move to commercial solvers like Gurobi or CPLEX, or approximate with Lagrangian relaxation — but the model structure remains identical.

---

=======================================================
  OPTIMIZATION STATUS: Optimal
=======================================================

  Optimal Total Cost: $1.5680/hr
  Budget Cap:         $5.0000/hr

  [Web API]
    t3.small     x8  ($0.184/hr)
    → CPU: 16 vCPU (min 8)
    → RAM: 16 GB  (min 16)
    → Perf: 80   (min 80)
    → Cost: $0.1840/hr

  [Batch Job]
    t3.small     x8  ($0.184/hr)
    m5.large     x2  ($0.192/hr)
    → CPU: 20 vCPU (min 16)
    → RAM: 32 GB  (min 32)
    → Perf: 140   (min 120)
    → Cost: $0.3760/hr

  [Database]
    r5.2xlarge   x2  ($1.008/hr)
    → CPU: 16 vCPU (min 8)
    → RAM: 128 GB  (min 128)
    → Perf: 200   (min 150)
    → Cost: $1.0080/hr

Plot saved to cloud_optimization.png
